Guitar scale · Modes

E Locrian scale on guitar

Every position of the E Locrian scale on the guitar neck, with tabs and fingering.

The darkest mode, built on a diminished triad — rare, unstable and haunting.

Mode 7 of the major scale: the same notes as F major, starting from its 7th note.

Notes
EFGAB♭CD
Formula
1♭2♭34♭5♭6♭7
Steps
HWWHWWW

Guitar

Standard tuning (E A D G B E) · 7 positions using 3 notes per string

EADGBe123456789101112131415R♭2♭34♭5♭6♭7R♭2♭34♭5♭6♭7R♭2♭34♭5♭6♭7R♭2♭34♭5♭6♭7R♭2♭34♭5♭6♭7R♭2♭34♭5♭6♭7R♭2♭34♭5♭6♭7R♭2♭34♭5♭6♭7R♭2♭3

Position 1 tab · frets 0–5, ascending

e|-------------------------------1-3-5-|
B|-------------------------1-3-5-------|
G|-------------------0-2-3-------------|
D|-------------0-2-3-------------------|
A|-------0-1-3-------------------------|
E|-0-1-3-------------------------------|

Play from the lowest note to the highest, then back down. Use one finger per fret: your index finger covers fret 1, and shift your hand slightly for the wider stretches. R marks the root — the home note to start and end on.

Chords in the E Locrian scale

Stack every other note of the scale to build a chord on each degree.

i° Edim Em7♭5 E G B♭
♭II F Fmaj7 F A C
♭iii Gm Gm7 G B♭ D
iv Am Am7 A C E
♭V B♭ B♭maj7 B♭ D F
♭VI C C7 C E G
♭vii Dm Dm7 D F A

Sounds great over

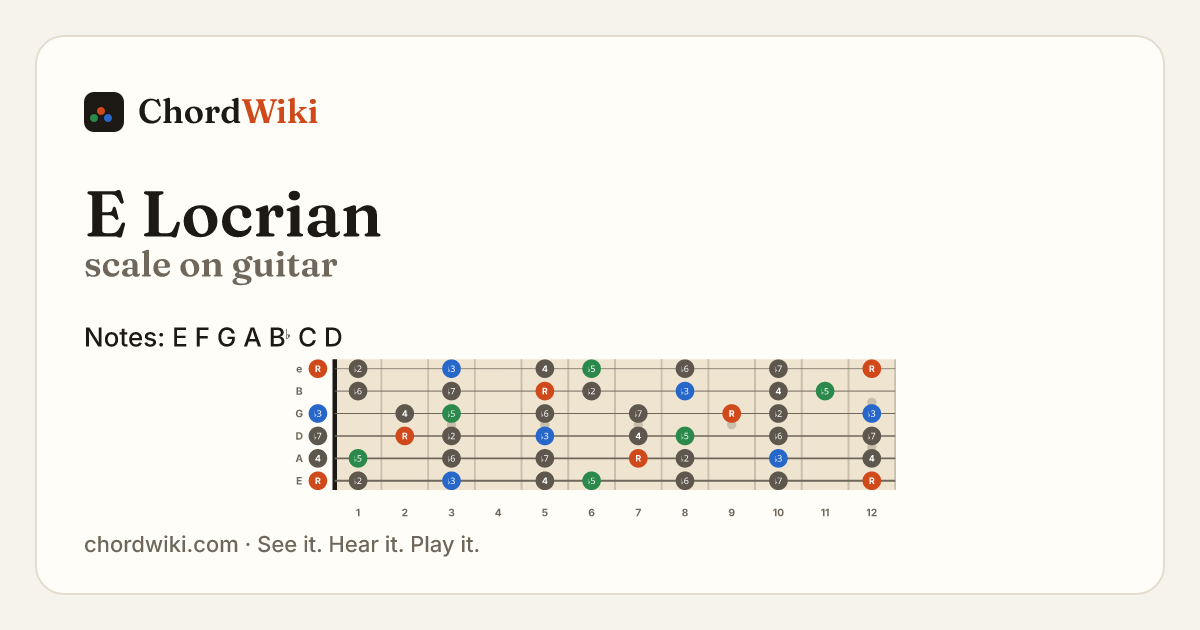

E Locrian scale on guitar
Save or share this scale chart. Long-press (or right-click) the image to save it, or download the PNG.
