Guitar chord · Sevenths

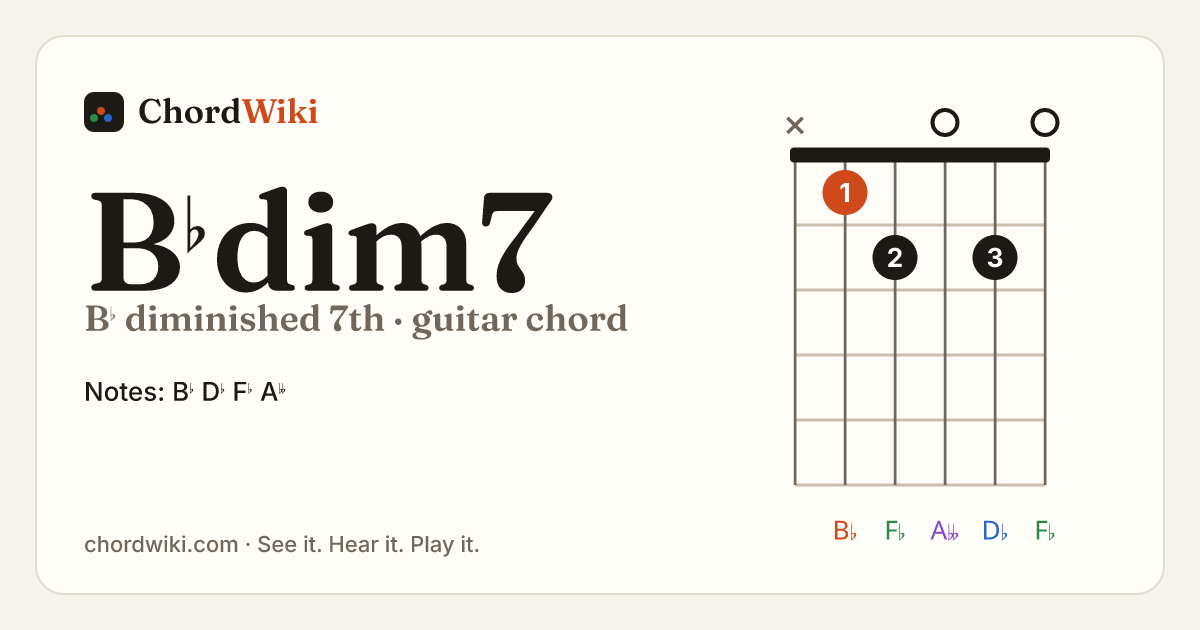

B♭ diminished 7th chord on guitar
x12020 · Open position
All 6 shapes, tab & fingering ↓
6 ways to play B♭dim7 on guitar, with finger positions, tabs and step-by-step instructions.
Symmetrical and very tense — every note is a minor 3rd apart.
B♭dim7 is the vii°7 chord in B minor.
- Notes
- B♭D♭F♭A𝄫
- Formula
- 1♭3♭5𝄫7
- Built from
- root · minor 3rd · diminished 5th · diminished 7th
Guitar
Standard tuning (E A D G B E) · 6 voicings · E string on the left · Other tunings →
How to play it · Open position
- 6th string (low E): don’t play — mute it
- 5th string (A): 1st fret, index finger (1) B♭
- 4th string (D): 2nd fret, middle finger (2) F♭
- 3rd string (G): play open A𝄫
- 2nd string (B): 2nd fret, ring finger (3) D♭
- 1st string (high E): play open F♭
Tablature
e|--0---| B|--2---| G|--0---| D|--2---| A|--1---| E|--x---|
Top line is the high E string. x = don’t play, 0 = open string.
Every B♭dim7 note on the guitar neck
Bright dots are the selected voicing — the rest are other places you can find the same chord tones.
Tips for playing B♭dim7 on guitar
On guitar, B♭dim7 has an open-position shape, x12020, using three fingers alongside the open strings. Don’t strum the low E string.
Notice the F♭ in B♭dim7 (B♭ D♭ F♭ A𝄫): each note of the chord takes its own letter (B–D–F–A), so the diminished 5th has to be written F♭ rather than E — the same key on a piano, spelled to fit the chord.
